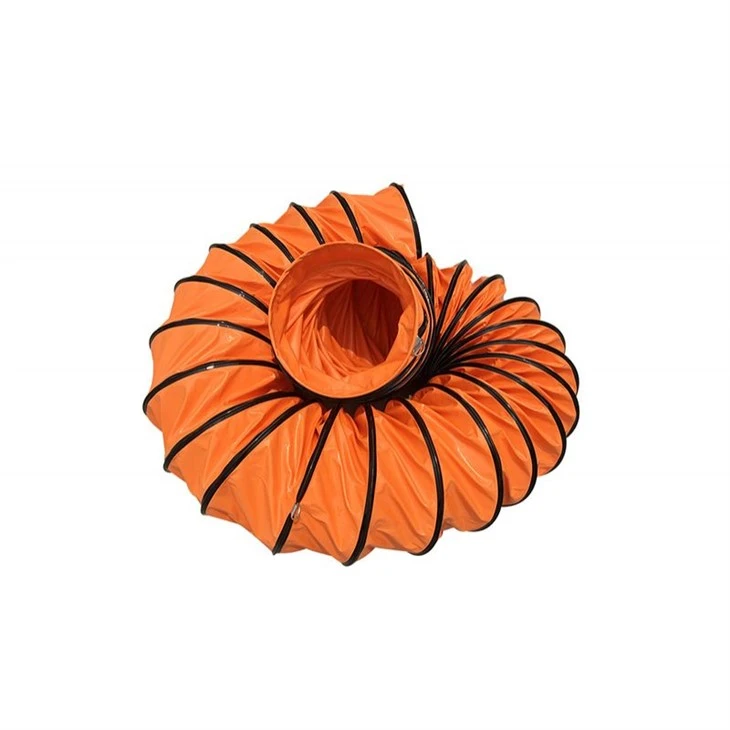

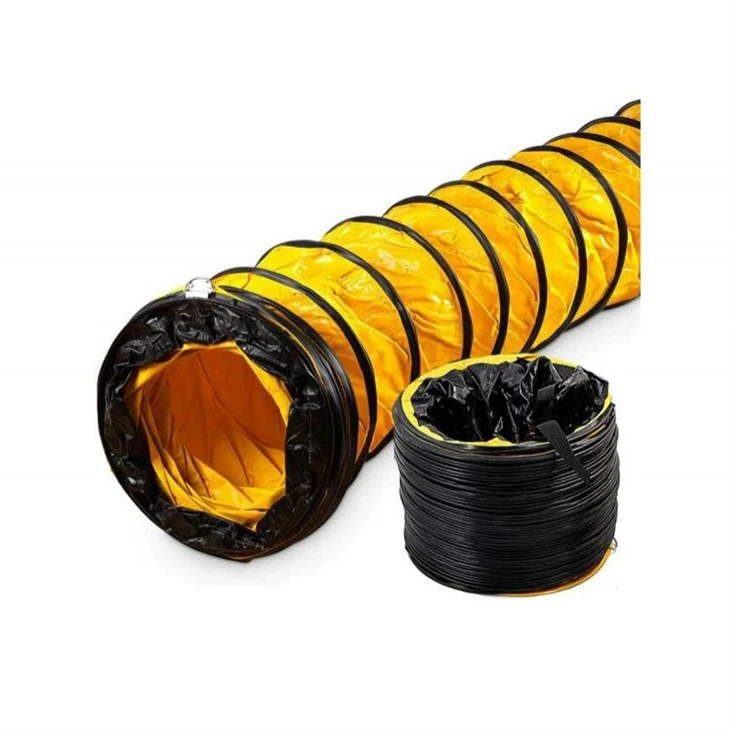

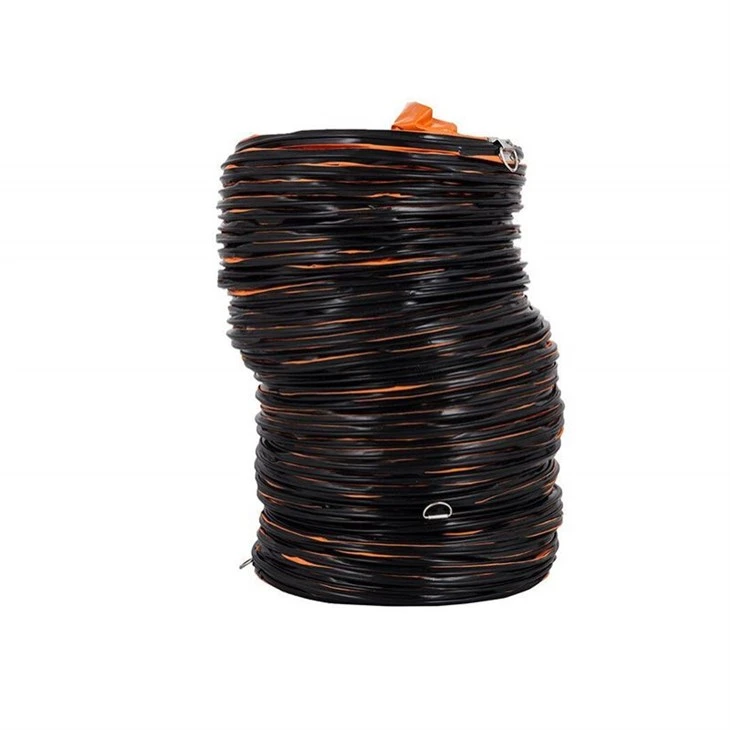

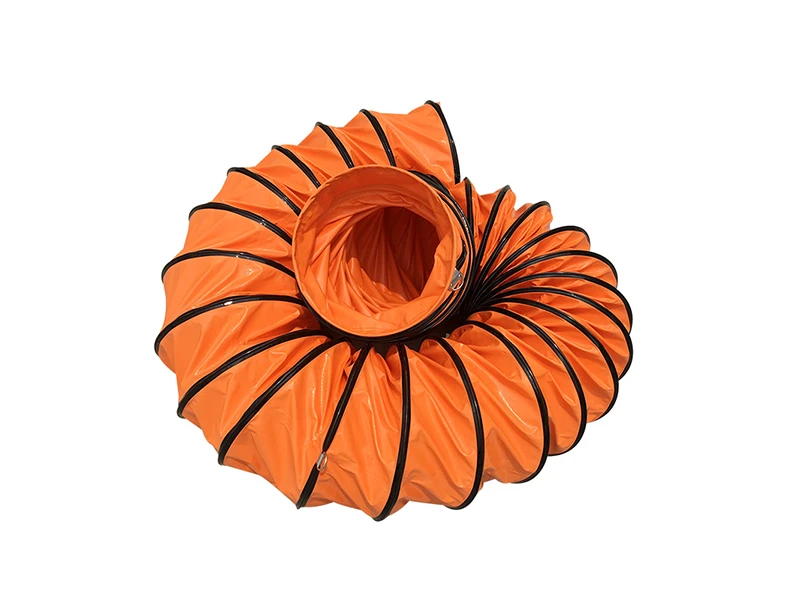

Fire Resistant Flexible Ducting
Fire Resistant Flexible Ducting combines safety, versatility, and durability to meet diverse ventilation needs. Whether for routine air management or emergency smoke extraction, this product delivers unmatched reliability.
Product Introduction
When fire safety and operational reliability cannot be compromised, our Fire Resistant Flexible Ducting delivers the critical protection your facility demands. Engineered with a specialized flame-retardant PVC compound, this ducting is designed to inhibit ignition, self-extinguish, and slow flame spread-making it the preferred choice for emergency smoke evacuation systems, commercial kitchen exhaust, and high-heat industrial environments. Unlike standard ventilation hoses that can become fuel sources in a fire, our fire-resistant ducting maintains its structural integrity while actively contributing to workplace safety. Reinforced with a high-tensile steel wire helix and available in diameters from 6 inches to 40 inches, it combines the flexibility needed for complex installations with the fire protection required by safety-conscious facility managers and fire protection engineers.

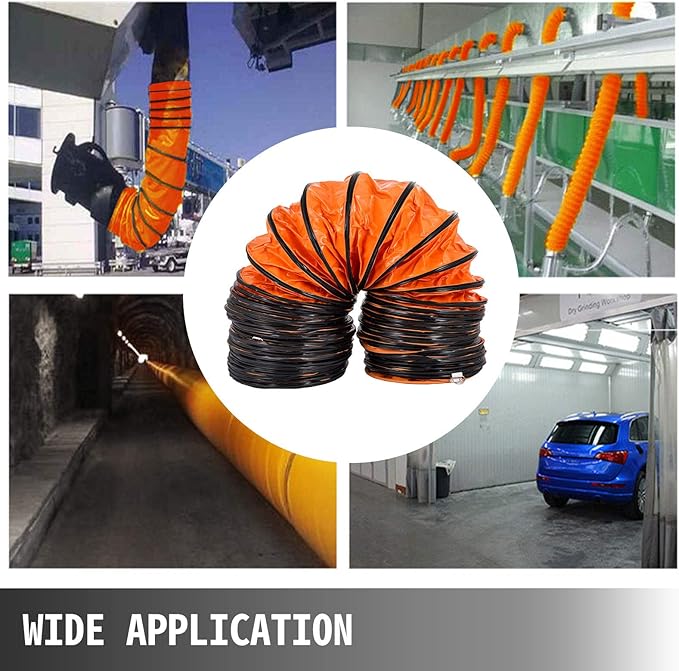

Applications and Usage Scenarios
Our Fire Resistant Flexible Ducting is purpose-built for environments where fire safety, heat resistance, and reliable air movement converge. Key applications include:
(A) Emergency Smoke Evacuation Systems
In the event of a fire, rapid smoke removal is critical for occupant survival and firefighter access. Our ducting integrates with emergency pressurization and smoke exhaust systems in high-rise buildings, underground parking garages, and tunnel ventilation networks. The flame-retardant properties ensure the duct itself does not contribute to fire spread.
(B) Commercial Kitchen & Restaurant Exhaust
Commercial cooking environments generate grease-laden, high-temperature fumes that pose significant fire hazards. Our fire-resistant ducting safely channels hot exhaust from fryers, grills, and ovens to external exhaust systems, withstanding both the heat and the corrosive effects of cooking oils and cleaning chemicals.
(C) Industrial Workshop Fume & Heat Extraction
Factories, foundries, and welding shops produce airborne hazards including hot metal particulates, welding smoke, and chemical vapors. This ducting captures contaminants at the source and safely exhausts them outdoors-even in environments where ambient temperatures approach the duct's operating limits.
(D) Dust Collection in Combustible Dust Environments
Facilities handling wood dust, grain dust, coal dust, or metal powders face explosion risks. Our fire-resistant ducting is a critical component of dust collection systems in these environments, providing a flame-retardant pathway that helps contain potential ignition sources.
(E) Temporary Ventilation for Construction & Emergency Response
Deploy rapid ventilation at construction sites, disaster recovery zones, and confined space entry points. The lightweight, flexible design allows for quick setup and repositioning as work conditions change.
Common scenarios
| Industry / Setting | Specific Use Case | Why Fire Resistant Ducting is Essential |
|---|---|---|
| High-Rise Buildings | Emergency smoke exhaust & stairwell pressurization | Prevents smoke migration; self-extinguishing for life safety |
| Commercial Kitchens | Oil fume extraction from fryers, grills, ovens | Withstands grease-laden heat; resists oil corrosion |
| Industrial Factories | Welding fume extraction; furnace off-gas venting | High-temperature tolerance; chemical resistance |
| Woodworking / Grain Facilities | Combustible dust collection | Flame-retardant ducting reduces explosion propagation risk |
| Construction Sites | Temporary ventilation in confined spaces | Lightweight; quick setup; flexible routing |
| Underground Parking & Tunnels | Smoke purge and fresh air supply | Fire-resistant construction meets building code requirements |
| Chemical Processing Plants | Acid vapor exhaust; reactor ventilation | Corrosion resistance plus fire safety for volatile environments |
| Marine & Offshore | Engine room ventilation; bilge exhaust | Saltwater corrosion resistance; fire safety in confined vessels |
Five Key Advantages of Fire Resistant Flexible Ducting
1. Advanced Flame-Retardant PVC Compound
Our ducting is manufactured using a specially formulated PVC resin containing flame-retardant additives that meet stringent safety standards. When exposed to flame, the material resists ignition and will self-extinguish once the flame source is removed-preventing the duct from becoming a fire propagation pathway. This is particularly critical in emergency smoke exhaust systems where duct integrity must be maintained during a fire event.
2. Superior Chemical & Corrosion Resistance
Industrial and commercial environments expose ducting to aggressive substances including acids, alkalis, oleic acid, cooking oils, and cleaning solvents. Our fire-resistant compound resists chemical degradation, ensuring long-term performance and preventing material breakdown that could compromise fire safety ratings.
3. Steel Wire Reinforced Flexibility
Embedded within the PVC wall is a continuous helical steel wire that provides:
- Structural integrity under both positive and negative pressure
- Crush resistance to prevent collapse in suction applications
- Exceptional flexibility for bending around obstacles and through tight spaces
- Kink resistance to maintain consistent airflow
This reinforcement allows the duct to adapt to complex building layouts without requiring numerous rigid fittings or elbows.
4. Wide Thermal Operating Range (-20°C to +100°C)
Our ducting maintains its fire-retardant properties and mechanical flexibility across a broad temperature spectrum:
- Cold performance: Remains flexible and crack-free down to -20°C for outdoor and unheated installations
- Heat performance: Withstands continuous operation up to +100°C for high-temperature exhaust applications
- Fire resilience: The flame-retardant additives remain active even after prolonged heat exposure
5. Rapid Installation with Integrated Connection System
Each section features convenient attachment straps or PP ropes integrated into the cuffs, enabling:
- Tool-free connection to portable ventilators, exhaust fans, and fixed ductwork
- Quick coupling of multiple duct sections for extended runs
- Secure, airtight seals that prevent leakage and maintain system efficiency
- Time-saving installation that reduces labor costs during initial setup and maintenance
FAQ
1: What is the difference between "fire resistant" and "fire retardant" ducting?
A: The terms are often used interchangeably. Our ducting is manufactured with flame-retardant PVC additives that inhibit ignition and cause the material to self-extinguish when the flame source is removed. This makes it suitable for emergency smoke exhaust systems and environments where fire propagation through ductwork is a concern.
Q2: Is this ducting compliant with building fire safety codes?
A: Our fire-resistant ducting is engineered to meet international fire safety standards for ventilation systems. Please contact us with your specific regional requirements (e.g., UL, EN, BS, NFPA) so we can confirm compliance and provide relevant documentation for your project.
Q3: Can this duct be used for kitchen exhaust with high grease content?
A: Yes. The smooth internal PVC surface resists grease accumulation, and the material is formulated to withstand the corrosive effects of cooking oils and cleaning agents. Regular cleaning of kitchen exhaust systems is still recommended to maintain optimal fire safety.
Q4: What is the maximum continuous operating temperature?
A: Our fire-resistant ducting is rated for continuous operation from -20°C to +100°C. For short-term spikes beyond 100°C, we recommend consulting us for our high-temperature variants designed for extreme heat applications.
Q5: Can the ducting be cut to custom lengths on-site?
A: Yes. The ducting can be easily cut with standard industrial knives or shears. However, we recommend ordering custom-cut lengths from the factory to ensure factory-finished cuffs with integrated connection straps for secure attachment.
The Fire Resistant Flexible Ducting is a dependable choice for industries that require safe, flexible, and durable ventilation solutions. If you are looking for a reliable product to improve air circulation and safety, feel free to contact us today-we welcome your inquiries and look forward to supporting your needs.
